Quesnel Lake Exploitation Analysis 2019

The suggested citation for this analytic report is:

Dalgarno, S. and Thorley, J.L. (2020) Quesnel Lake Exploitation Analysis 2019. A Poisson Consulting Analysis Appendix. URL: https://www.poissonconsulting.ca/f/574898434.

Background

Quesnel Lake supports a recreational fishery for large Bull Trout, Lake Trout and Rainbow Trout. To provide information on the natural and fishing mortality, trout were caught by angling and tagged with acoustic transmitters and/or a $100 and $10 reward tag.

Methods

Data Preparation

The outing, receiver deployment, detection, fish capture and recapture information were provided by the Ministry of Forests, Lands and Natural Resource Operations and added to a SQLite database.

The data were prepared for analysis using R version 3.6.2 (R Core Team 2019). Receivers were assumed to have a detection range of 500 m. Detections were aggregated daily, where for each transmitter the receiver with the most number of detections was chosen. In the case of a tie, the receiver with the greatest coverage area was chosen. Only individuals with a fork length (FL) \(\geq\) 450 mm, an acoustic tag life \(\geq\) 365 days (if acoustically tagged) and a $100 and $10 reward tags were included in the survival analysis.

The Seasons were Winter (December - February), Spring (March - May), Summer (June - August) and Autumn (September - November).

Data Analysis

Hierarchical Bayesian models were fitted to the data using R version 3.6.2 (R Core Team 2018) and JAGS 4.2.0 (Plummer 2015) which interfaced with each other via the jmbr package. For additional information on hierarchical Bayesian modelling in the BUGS language, of which JAGS uses a dialect, the reader is referred to Kery and Schaub (2011, 41–44).

Unless indicated otherwise, the Bayesian analyses used normal and uniform prior distributions that were vague in the sense that they did not constrain the posteriors (Kery and Schaub 2011, 36). The posterior distributions were estimated from 1500 Markov Chain Monte Carlo (MCMC) samples thinned from the second halves of 3 chains (Kery and Schaub 2011, 38–40). Model convergence was confirmed by ensuring that \(\hat{R} \leq 1.05\) (Kery and Schaub 2011, 40) and \(\textrm{ESS} \geq 150\) for each of the monitored parameters (Kery and Schaub 2011, 61). Where \(\hat{R}\) is the potential scale reduction factor and \(\textrm{ESS}\) is the effective sample size (Brooks et al. 2011).

The posterior distributions of the fixed (Kery and Schaub 2011, 75) parameters are summarised in terms of the point estimate, standard deviation (sd), the z-score, lower and upper 95% confidence/credible limits (CLs) and the p-value (Kery and Schaub 2011, 37, 42). The estimate is the median (50th percentile) of the MCMC samples, the z-score is \(\mathrm{sd}/\mathrm{mean}\) and the 95% CLs are the 2.5th and 97.5th percentiles. A p-value of 0.05 indicates that the lower or upper 95% CL is 0.

The results are displayed graphically by plotting the modeled relationships between particular variables and the response with the remaining variables held constant. In general, continuous and discrete fixed variables are held constant at their mean and first level values respectively while random variables are held constant at their typical values (expected values of the underlying hyperdistributions) (Kery and Schaub 2011, 77–82). Where informative the influence of particular variables is expressed in terms of the effect size (i.e., percent change in the response variable) with 95% CIs (Bradford, Korman, and Higgins 2005).

Model Descriptions

Condition

The expected weight of fish of a given length were estimated from the data using a mass-length model (He et al. 2008). Key assumptions of the condition model include:

  • The weight varies with length according to an allometric relationship.
  • The residual variation in weight is log-normally distributed.

Tag Loss

T-bar tag loss was estimated from the number of tags reported from recaught double-tagged individuals (Fabrizio et al. 1999).

Key assumptions of the tag loss model include:

  • The probability of tag loss is independent between tags on a fish.
  • Reported tag numbers are described by a zero-truncated binomial distribution (as fish that had lost both tags were not reportable).

Across all species, of the fish that were reported with only one tag, 15 had the $100 tag while only 1 had the $10 tag, suggesting that anglers were underreporting fish that had lost their $100 tag.

Survival

The natural mortality and recapture probability were estimated using a Bayesian individual state-space survival model (Thorley and Andrusak 2017) with monthly intervals. The survival model incorporated handling mortality, acoustic detections, inter-section movement, T-bar tag loss and reporting. In addition to assumptions 1 to 2 and 4 to 10, in Thorley and Andrusak (2017), the model also assumes that:

  • The effect of handling on mortality lasts up to two months after (re)capture.
  • The monthly probability of T-bar tag loss is 1/24 of that estimated by the tag loss model.
  • The probability of detection depends on whether a fish is alive or has died near or far from a receiver
  • All recaptured fish are released.
  • All recaptured fish have their tags removed.
  • Reporting of recaptured fish with one or more T-bar tags is between 90 and 100%.

Yield-Per-Recruit

The optimal recapture rate (to maximize biomass of individuals caught) was calculated using a yield-per-recruit approach (Bison, O’Brien, and Martell 2003). Key assumptions include:

  • The population is at equilibrium.
  • All captured individuals < 500 mm are retained.
  • All captured individuals \(\geq\) 500 mm are released.
  • Handling mortality is 10%.
  • The life-history parameters are fixed.
  • There are no Allee effects.
  • There are no limitations on prey species.

The optimal yield was also calculated with no slot limit.

Results

Templates

Condition

.model {
               bWeight ~ dnorm(0, 1^-2)
               bWeightLength ~ dnorm(3.18, 0.19^-2)

               sWeight ~ dnorm(0, 1^-2) T(0,)
               for(i in 1:length(LogLength)) {
               eWeight[i] <- bWeight + bWeightLength * LogLength[i]
               Weight[i] ~ dlnorm(eWeight[i], exp(sWeight)^-2)
               }
               }

Block 1. Condition model description.

Tag Loss

model {
  bTagLoss ~ dunif(0,1)
  for (i in 1:nObs) {
    TagsRecap[i] ~ dbin(1 - bTagLoss, 2) T(1, )
  }
..

Block 2. Model description.

Survival

.model{
  bMortality ~ dnorm(-3, 3^-2)
  bMortalityHandling ~ dnorm(0, 2^-2)
  bMonthsHandling <- 2
  bDetectedAlive ~ dunif(0, 1)
  bDieNear ~ dunif(0, 1)
  bDetectedDeadNear ~ dunif(0.5, 1)
  bDetectedDeadFar ~ dunif(0, 0.5)
  bMoved ~ dunif(0, 1)
  bRecaptured ~ dunif(0, 1 - (1 - 0.50)^(1/12))
  bReleased <- 1
  bReported ~ dunif(0.9, 1.00)

  for (i in 1:nCapture){
    logit(eMortality[i,PeriodCapture[i]]) <- bMortality + bMortalityHandling

    eDetectedAlive[i] <- bDetectedAlive
    eDieNear[i] ~ dbern(bDieNear)
    eDetectedDeadNear[i] <- bDetectedDeadNear
    eDetectedDeadFar[i] <- bDetectedDeadFar

    eDetected[i,PeriodCapture[i]] <- Alive[i,PeriodCapture[i]] * eDetectedAlive[i] + (1-Alive[i,PeriodCapture[i]]) * (eDieNear[i] * eDetectedDeadNear[i] + (1 - eDieNear[i]) * eDetectedDeadFar[i])

    eMoved[i,PeriodCapture[i]] <- bMoved
    eRecaptured[i,PeriodCapture[i]] <- bRecaptured
    eReleased[i,PeriodCapture[i]] <- bReleased
    eReported[i,PeriodCapture[i]] <- bReported

    InLake[i,PeriodCapture[i]] <- 1
    Alive[i,PeriodCapture[i]] ~ dbern(1-eMortality[i,PeriodCapture[i]])
    TBarTag100[i,PeriodCapture[i]] ~ dbern(1-TagLoss)
    TBarTag10[i,PeriodCapture[i]] ~ dbern(1-TagLoss)

    Detected[i,PeriodCapture[i]] ~ dbern(Monitored[i,PeriodCapture[i]] * eDetected[i,PeriodCapture[i]])
    Moved[i,PeriodCapture[i]] ~ dbern(Alive[i,PeriodCapture[i]] * Monitored[i,PeriodCapture[i]] * eMoved[i,PeriodCapture[i]])

    Recaptured[i,PeriodCapture[i]] ~ dbern(Alive[i,PeriodCapture[i]] * eRecaptured[i,PeriodCapture[i]])
    Reported[i,PeriodCapture[i]] ~ dbern(Recaptured[i,PeriodCapture[i]] * eReported[i,PeriodCapture[i]] * step(TBarTag100[i,PeriodCapture[i]] - 1))
    Released[i,PeriodCapture[i]] ~ dbern(Recaptured[i,PeriodCapture[i]] * (1-Reported[i,PeriodCapture[i]]) * eReleased[i,PeriodCapture[i]])

    eMonthsSinceCapture[i,PeriodCapture[i]] <- 1-Recaptured[i,PeriodCapture[i]]

  for(j in (PeriodCapture[i]+1):nPeriod) {
    logit(eMortality[i,j]) <- bMortality + bMortalityHandling * step(bMonthsHandling - eMonthsSinceCapture[i,j-1] - 1)

    eDetected[i,j] <- Alive[i,j] * eDetectedAlive[i] + (1-Alive[i,j]) * (eDieNear[i] * eDetectedDeadNear[i] + (1 - eDieNear[i]) * eDetectedDeadFar[i])

    eMoved[i,j] <- bMoved
    eRecaptured[i,j] <- bRecaptured
    eReleased[i,j] <- bReleased
    eReported[i,j] <- bReported

    InLake[i,j] ~ dbern(InLake[i,j-1] * (1 - Recaptured[i,j-1] * (1 - Released[i,j-1])))
    Alive[i,j] ~ dbern(Alive[i,j-1] * InLake[i,j] * (1-eMortality[i,j]))
    TBarTag100[i,j] ~ dbern(TBarTag100[i,j-1] * (1-Recaptured[i,j-1]) * (1-TagLoss))
    TBarTag10[i,j] ~ dbern(TBarTag10[i,j-1] * (1-Recaptured[i,j-1]) * (1-TagLoss))

    Detected[i,j] ~ dbern(InLake[i,j] * Monitored[i,j] * eDetected[i,j])
    Moved[i,j] ~ dbern(Alive[i,j] * Monitored[i,j] * eMoved[i,j])

    Recaptured[i,j] ~ dbern(Alive[i,j] * eRecaptured[i,j])
    Reported[i,j] ~ dbern(Recaptured[i,j] * eReported[i,j] * step(TBarTag100[i,j] - 1))
    Released[i,j] ~ dbern(Recaptured[i,j] * (1-Reported[i,j]) * eReleased[i,j])

    eMonthsSinceCapture[i,j] <- (1-Recaptured[i,j]) * (eMonthsSinceCapture[i,j-1] + 1)
  }
  }
..

Block 3. Survival model description.

Tables

Recaptures

Table 1. Summary of the captures and recaptures from the survival dataset by species and year.

Species Year Captured Recaptured
Bull Trout 2013 24 0
Bull Trout 2014 16 0
Bull Trout 2015 13 2
Bull Trout 2016 23 1
Bull Trout 2017 8 5
Bull Trout 2018 4 0
Bull Trout 2019 0 0
Lake Trout 2013 101 1
Lake Trout 2014 181 9
Lake Trout 2015 74 2
Lake Trout 2016 60 9
Lake Trout 2017 35 11
Lake Trout 2018 0 0
Lake Trout 2019 0 0
Rainbow Trout 2013 55 1
Rainbow Trout 2014 53 13
Rainbow Trout 2015 55 6
Rainbow Trout 2016 140 18
Rainbow Trout 2017 65 13
Rainbow Trout 2018 91 10
Rainbow Trout 2019 92 6

Condition

Table 2. Parameter descriptions.

Parameter Description
bWeight Intercept of eWeight
bWeightLength Effect of Length on bWeight
eWeight Log expected Weight
LogLength Log-transformed and centered fork length (cm)
sWeight Standard deviation of residual variation in eWeight
Weight Mass (kg)
Bull Trout

Table 3. Model coefficients.

term estimate sd zscore lower upper pvalue
bWeight 0.8297757 0.1322915 6.2471713 0.5610818 1.0816456 0.0006662
bWeightLength 3.1774374 0.1870486 16.9925909 2.7916318 3.5496950 0.0006662
sWeight 0.0118292 0.0174712 0.9721239 0.0004531 0.0645066 0.0006662

Table 4. Model summary.

n K nchains niters nthin ess rhat converged
60 3 3 500 10 1449 1.001 TRUE
Lake Trout

Table 5. Model coefficients.

term estimate sd zscore lower upper pvalue
bWeight 0.8883430 0.0597298 14.8820968 0.7750009 1.003225 0.0006662
bWeightLength 3.1668007 0.1780803 17.7944419 2.8348505 3.493468 0.0006662
sWeight 0.0025467 0.0040909 0.9431764 0.0000702 0.015168 0.0006662

Table 6. Model summary.

n K nchains niters nthin ess rhat converged
263 3 3 500 10 1256 1.002 TRUE
Rainbow Trout

Table 7. Model coefficients.

term estimate sd zscore lower upper pvalue
bWeight 0.8824793 0.0462303 19.079068 0.7895845 0.9735769 0.0006662
bWeightLength 3.1620721 0.1618839 19.530999 2.8450008 3.4759539 0.0006662
sWeight 0.0015623 0.0021732 1.010563 0.0000530 0.0082513 0.0006662

Table 8. Model summary.

n K nchains niters nthin ess rhat converged
470 3 3 500 10 1184 1.002 TRUE

Tag Loss

Table 9. The number of recaptured fish that were reported without their $100 versus $10 reward tag by species.

Species Loss100 Loss10
Bull Trout 0 5
Lake Trout 1 1
Rainbow Trout 0 9

Table 10. Parameter descriptions.

Parameter Description
bTagLossIntercept Intercept for logit(eTagLoss)
eTagLoss[i] Predicted probability of single tag loss for the ith recapture
TagsRecap[i] Tags remaining on ith recapture
Bull Trout

Table 11. Model coefficients.

term estimate sd zscore lower upper pvalue
bTagLoss 0.1947323 0.0693181 2.895183 0.0807137 0.3509004 0.0006662

Table 12. Model summary.

n K nchains niters nthin ess rhat converged
14 1 3 500 10 1500 1 TRUE
Lake Trout

Table 13. Model coefficients.

term estimate sd zscore lower upper pvalue
bTagLoss 0.0300305 0.0166965 1.98645 0.0088054 0.0761053 0.0006662

Table 14. Model summary.

n K nchains niters nthin ess rhat converged
60 1 3 500 10 1500 1 TRUE
Rainbow Trout

Table 15. Model coefficients.

term estimate sd zscore lower upper pvalue
bTagLoss 0.063162 0.0177743 3.643769 0.034354 0.1055982 0.0006662

Table 16. Model summary.

n K nchains niters nthin ess rhat converged
100 1 3 500 10 1364 1.002 TRUE

Survival

Table 17. Parameter descriptions.

Parameter Description
bDetectedAlive Monthly probability of detection if in-lake
bDetectedDeadFar Monthly probability of detection if in-lake and dead far from a receiver
bDetectedDeadNear Monthly probability of detection if in-lake and dead near a receiver
bDieNear Lifetime probability of dying near versus far from a receiver
bMonthsHandling Duration of handling effect in months
bMortality Log odds monthly probability of dying of natural causes
bMortalityHandling Effect of capture and handling on bMortality
bMoved Monthly probability of being detected moving between sections if alive
bRecaptured Monthly probability of being recaptured if alive
bRelease Probability of being released if recaptured and untagged
bReported Probability of being reported if recaptured with one or more T-bar tags
TagLoss Monthly probability of loss of a single tag (estimate from tag loss model divided by 24)
Bull Trout

Table 18. Model coefficients.

term estimate sd zscore lower upper pvalue
bDetectedAlive 0.6972246 0.0120973 57.630457 0.6744240 0.7204530 0.0006662
bDetectedDeadFar 0.0078189 0.0023078 3.523863 0.0042600 0.0132538 0.0006662
bDetectedDeadNear 0.9200423 0.0253973 36.155798 0.8641472 0.9624430 0.0006662
bDieNear 0.0843894 0.0377185 2.384809 0.0300552 0.1726160 0.0006662
bMortality -3.3233576 0.1495587 -22.220999 -3.6311573 -3.0311040 0.0006662
bMortalityHandling 0.9861377 0.3373141 2.875253 0.2658565 1.5993282 0.0059960
bMoved 0.1810338 0.0101336 17.866241 0.1619431 0.2011515 0.0006662
bRecaptured 0.0049417 0.0017100 3.010898 0.0024426 0.0089347 0.0006662
bReported 0.9591577 0.0286618 33.365097 0.9037297 0.9981237 0.0006662

Table 19. Model summary.

n K nchains niters nthin ess rhat converged
7040 9 3 500 50 344 1.017 TRUE
Lake Trout

Table 20. Model coefficients.

term estimate sd zscore lower upper pvalue
bDetectedAlive 0.9191034 0.0043094 213.240013 0.9108973 0.9271175 0.0006662
bDetectedDeadFar 0.0100367 0.0046652 2.304728 0.0040527 0.0211195 0.0006662
bDetectedDeadNear 0.6638272 0.0316303 21.058508 0.6107534 0.7367335 0.0006662
bDieNear 0.2451305 0.0490172 5.034022 0.1579986 0.3493860 0.0006662
bMortality -3.9735965 0.1199373 -33.186915 -4.2262362 -3.7612736 0.0006662
bMortalityHandling 0.4278720 0.3892762 1.045451 -0.3753722 1.1179428 0.3044637
bMoved 0.4542085 0.0078283 58.026192 0.4385143 0.4691766 0.0006662
bRecaptured 0.0034530 0.0005093 6.820299 0.0025209 0.0045225 0.0006662
bReported 0.9865066 0.0174399 56.272839 0.9351863 0.9993338 0.0006662

Table 21. Model summary.

n K nchains niters nthin ess rhat converged
36080 9 3 500 50 27 1.275 FALSE
Rainbow Trout

Table 22. Model coefficients.

term estimate sd zscore lower upper pvalue
bDetectedAlive 0.9560250 0.0029198 327.402875 0.9500273 0.9615393 0.0006662
bDetectedDeadFar 0.0226848 0.0023388 9.731491 0.0183249 0.0273173 0.0006662
bDetectedDeadNear 0.7105362 0.0228101 31.109424 0.6626384 0.7508247 0.0006662
bDieNear 0.1123618 0.0184284 6.148080 0.0812937 0.1514553 0.0006662
bMortality -2.7171286 0.0588120 -46.189771 -2.8318430 -2.6070036 0.0006662
bMortalityHandling 0.1555180 0.1518917 1.034297 -0.1373809 0.4470858 0.2951366
bMoved 0.6876527 0.0064453 106.708660 0.6756463 0.7002395 0.0006662
bRecaptured 0.0102242 0.0012017 8.557276 0.0080528 0.0127336 0.0006662
bReported 0.9897656 0.0131974 74.702370 0.9493788 0.9995983 0.0006662

Table 23. Model summary.

n K nchains niters nthin ess rhat converged
44080 9 3 500 50 837 1.054 FALSE

Yield-per-Recruit

Slot Limit

Table 24. Bull Trout yield-per-recruit calculations including the capture probability (pi), exploitation rate (u), and average age, length and weight of fish harvested.

Type pi u Yield Age Length Weight Effort
actual 0.0577148 0.0577148 0.0643621 6.112073 53.01551 1810.651 0.5642278
optimal 0.4431592 0.4431592 0.2377927 5.441708 49.34771 1430.195 5.5568812

Table 25. Bull Trout yield-per-recruit model parameters.

Parameter Value Description Source
tmax 30.0000000 The maximum age (yr). Professional Judgement
k 0.1300000 The VB growth coefficient (yr-1). Professional Judgement
Linf 100.0000000 The VB mean maximum length (cm). Default
t0 0.0000000 The (theoretical) age at zero length (yr). Default
k2 0.1300000 The VB growth coefficient after length L2 (yr-1). Default
Linf2 100.0000000 The VB mean maximum length after length L2 (cm). Default
L2 1000.0000000 The length (or age if negative) at which growth switches from the first to second phase (cm or yr). Default
Wb 3.1774374 The weight (as a function of length) scaling exponent. Current Study
Ls 65.0000000 The length (or age if negative) at which 50 % mature (cm or yr). Professional Judgement
Sp 100.0000000 The maturity (as a function of length) power. Default
es 0.5000000 The annual probability of a mature fish spawning. Professional Judgement
Sm 0.0000000 The spawning mortality probability. Professional Judgement
fb 1.0000000 The fecundity (as a function of weight) scaling exponent. Default
tR 1.0000000 The age from which survival is density-independent (yr). Default
BH 1.0000000 Recruitment follows a Beverton-Holt (1) or Ricker (0) relationship. Default
Rk 22.9500000 The lifetime spawners per spawner at low density. (Chudnow, van Poorten, and McAllister 2018)
n 0.3460813 The annual interval natural mortality rate from age tR. Current Study
nL 0.3000000 The annual interval natural mortality rate from length Ln. Default
Ln 1000.0000000 The length (or age if negative) at which the natural mortality rate switches from n to nL (cm or yr). Constant Mortality
Lv 40.0000000 The length (or age if negative) at which 50 % vulnerable to harvest (cm or yr). Professional Judgement
Vp 20.0000000 The vulnerability to harvest (as a function of length) power. Professional Judgement
Llo 0.0000000 The lower harvest slot length (cm). Default
Lup 50.0000000 The upper harvest slot length (cm). Fishery Regulation
Nc 0.0000000 The slot limits non-compliance probability. Default
pi 0.0577148 The annual capture probability. Current Study
rho 0.0000000 The release probability. Default
Hm 0.1000000 The hooking mortality probability. Professional Judgement
Rmax 1.0000000 The number of recruits at the carrying capacity (ind). Default
Wa 0.0051225 The (extrapolated) weight of a 1 cm individual (g). Current Study
fa 1.0000000 The (theoretical) fecundity of a 1 g female (eggs). Default
q 0.1000000 The catchability (annual probability of capture) for a unit of effort. Default

Table 26. Lake Trout yield-per-recruit calculations including the capture probability (pi), exploitation rate (u), and average age, length and weight of fish harvested.

Type pi u Yield Age Length Weight Effort
actual 0.0406584 0.0406584 0.3274836 6.036071 53.16049 2466.341 0.3939626
optimal 0.2434739 0.2434739 0.9276079 5.049155 47.55524 1861.784 2.6482241

Table 27. Lake Trout yield-per-recruit model parameters.

Parameter Value Description Source
tmax 30.0000000 The maximum age (yr). Professional Judgement
k 0.1500000 The VB growth coefficient (yr-1). Professional Judgement
Linf 100.0000000 The VB mean maximum length (cm). Default
t0 0.0000000 The (theoretical) age at zero length (yr). Default
k2 0.1500000 The VB growth coefficient after length L2 (yr-1). Default
Linf2 100.0000000 The VB mean maximum length after length L2 (cm). Default
L2 1000.0000000 The length (or age if negative) at which growth switches from the first to second phase (cm or yr). Default
Wb 3.1668007 The weight (as a function of length) scaling exponent. Current Study
Ls 65.0000000 The length (or age if negative) at which 50 % mature (cm or yr). Professional Judgement
Sp 100.0000000 The maturity (as a function of length) power. Default
es 0.5000000 The annual probability of a mature fish spawning. Professional Judgement
Sm 0.0000000 The spawning mortality probability. Professional Judgement
fb 1.0000000 The fecundity (as a function of weight) scaling exponent. Default
tR 1.0000000 The age from which survival is density-independent (yr). Default
BH 1.0000000 Recruitment follows a Beverton-Holt (1) or Ricker (0) relationship. Default
Rk 24.1000000 The lifetime spawners per spawner at low density. (Myers, Bowen, and Barrowman 1999)
n 0.2003430 The annual interval natural mortality rate from age tR. Current Study
nL 0.1500000 The annual interval natural mortality rate from length Ln. Default
Ln 1000.0000000 The length (or age if negative) at which the natural mortality rate switches from n to nL (cm or yr). Constant Mortality
Lv 25.0000000 The length (or age if negative) at which 50 % vulnerable to harvest (cm or yr). Professional Judgement
Vp 20.0000000 The vulnerability to harvest (as a function of length) power. Professional Judgement
Llo 0.0000000 The lower harvest slot length (cm). Default
Lup 50.0000000 The upper harvest slot length (cm). Fishery Regulation
Nc 0.0000000 The slot limits non-compliance probability. Default
pi 0.0406584 The annual capture probability. Current Study
rho 0.0000000 The release probability. Default
Hm 0.1000000 The hooking mortality probability. Professional Judgement
Rmax 1.0000000 The number of recruits at the carrying capacity (ind). Default
Wa 0.0055748 The (extrapolated) weight of a 1 cm individual (g). Current Study
fa 1.0000000 The (theoretical) fecundity of a 1 g female (eggs). Default
q 0.1000000 The catchability (annual probability of capture) for a unit of effort. Default

Table 28. Rainbow Trout yield-per-recruit calculations including the capture probability (pi), exploitation rate (u), and average age, length and weight of fish harvested.

Type pi u Yield Age Length Weight Effort
actual 0.1160205 0.1160205 0.0771597 2.780121 41.37692 1005.9005 1.170470
optimal 0.3971217 0.3971217 0.1501503 2.530436 38.80338 796.1728 4.802937

Table 29. Rainbow Trout yield-per-recruit model parameters.

Parameter Value Description Source
tmax 30.0000000 The maximum age (yr). Professional Judgement
k 0.2000000 The VB growth coefficient (yr-1). Professional Judgement
Linf 100.0000000 The VB mean maximum length (cm). Default
t0 0.0000000 The (theoretical) age at zero length (yr). Default
k2 0.2000000 The VB growth coefficient after length L2 (yr-1). Default
Linf2 100.0000000 The VB mean maximum length after length L2 (cm). Default
L2 1000.0000000 The length (or age if negative) at which growth switches from the first to second phase (cm or yr). Default
Wb 3.1620721 The weight (as a function of length) scaling exponent. Current Study
Ls 65.0000000 The length (or age if negative) at which 50 % mature (cm or yr). Professional Judgement
Sp 100.0000000 The maturity (as a function of length) power. Default
es 0.5000000 The annual probability of a mature fish spawning. Professional Judgement
Sm 0.5000000 The spawning mortality probability. Professional Judgement
fb 1.0000000 The fecundity (as a function of weight) scaling exponent. Default
tR 1.0000000 The age from which survival is density-independent (yr). Default
BH 1.0000000 Recruitment follows a Beverton-Holt (1) or Ricker (0) relationship. Default
Rk 12.5000000 The lifetime spawners per spawner at low density. (???)
n 0.5359126 The annual interval natural mortality rate from age tR. Current Study
nL 0.5000000 The annual interval natural mortality rate from length Ln. Default
Ln 1000.0000000 The length (or age if negative) at which the natural mortality rate switches from n to nL (cm or yr). Constant Mortality
Lv 30.0000000 The length (or age if negative) at which 50 % vulnerable to harvest (cm or yr). Professional Judgement
Vp 20.0000000 The vulnerability to harvest (as a function of length) power. Professional Judgement
Llo 0.0000000 The lower harvest slot length (cm). Default
Lup 50.0000000 The upper harvest slot length (cm). Fishery Regulation
Nc 0.0000000 The slot limits non-compliance probability. Default
pi 0.1160205 The annual capture probability. Current Study
rho 0.0000000 The release probability. Default
Hm 0.1000000 The hooking mortality probability. Professional Judgement
Rmax 1.0000000 The number of recruits at the carrying capacity (ind). Default
Wa 0.0061207 The (extrapolated) weight of a 1 cm individual (g). Current Study
fa 1.0000000 The (theoretical) fecundity of a 1 g female (eggs). Default
q 0.1000000 The catchability (annual probability of capture) for a unit of effort. Default

Figures

Captures

figures/capture/CaptureHistogram.png

Figure 1. Captures by fork length, year, species and tag type.

Sections

figures/sections/SectionMap.png

Figure 2. Quesnel Lake sections. Color code is used to identify sections throughout analysis.

Coverage

figures/coverage/ReceiverSpatialCoverage.png

Figure 3. Receiver coverage of section area by date.

Detections

figures/detection/DetectionOverview.png

Figure 4. Location (color) and date of detections by species for each acoustic tagged fish. Grey segments indicate estimated tag life from capture date. Black shapes indicate recapture date (square indicates that fish was not released; triangle indicates release).

Section Use

figures/movement/SectionUseMapBullTrout.png

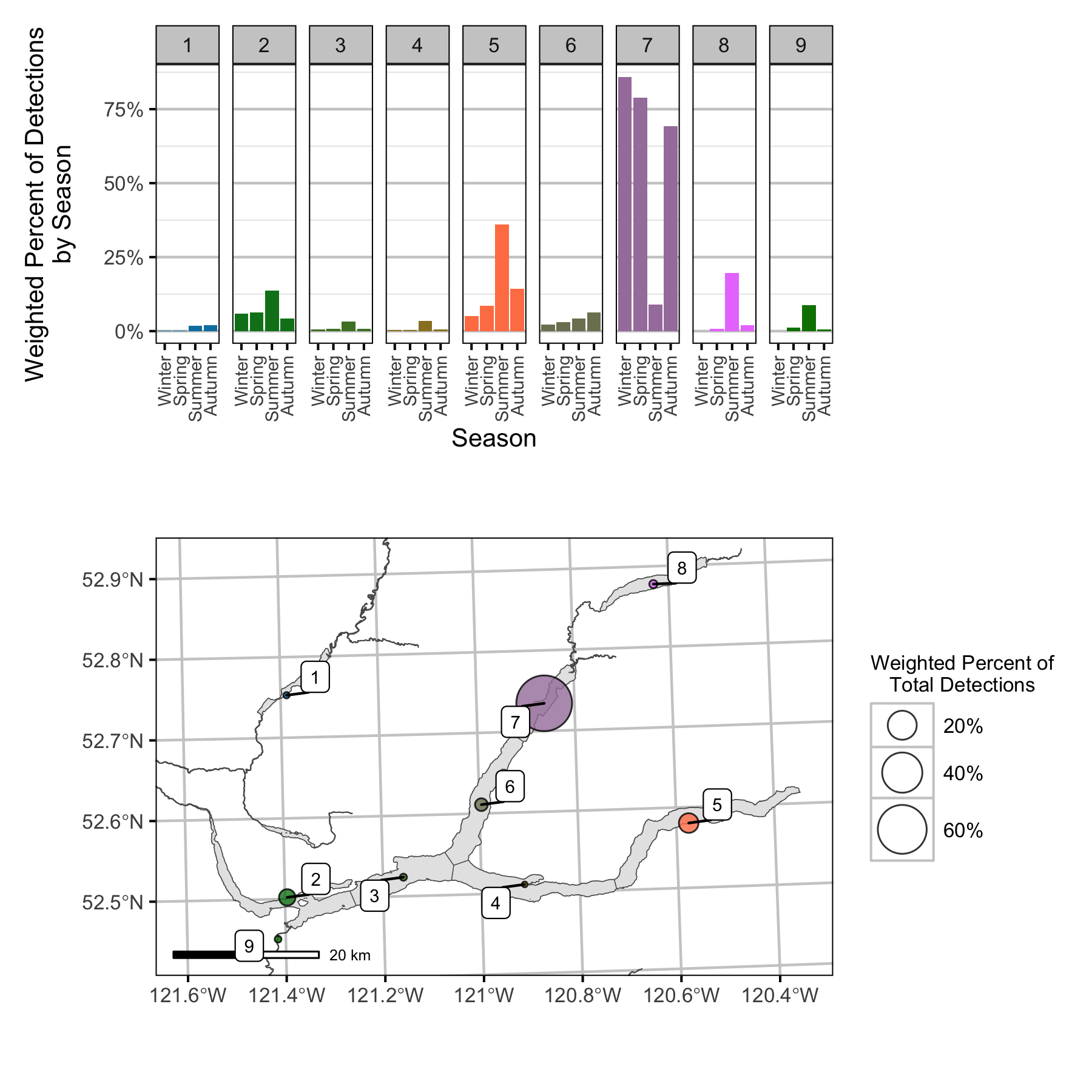

Figure 5. Percent of Bull Trout detections by section and season, weighted by receiver coverage.

figures/movement/SectionUseMapLakeTrout.png

Figure 6. Percent of Lake Trout detections by section and season, weighted by receiver coverage.

figures/movement/SectionUseMapRainbowTrout.png

Figure 7. Percent of Rainbow Trout detections by section and season, weighted by receiver coverage.

Condition

figures/condition/condition.png

Figure 8. Estimated weight by length and Species (with 95% CIs and raw data).

Tag Loss

figures/tagloss/tagloss.png

Figure 9. Estimated probability of the loss of a single T-bar tag by species (with 95% CRIs).

Survival

figures/survival/recapture.png

Figure 10. The annual interval probability of recapture by species.

figures/survival/mortality.png

Figure 11. The annual interval probability of recapture by species (with 95% CIs).

figures/survival/handling.png

Figure 12. The handling mortality by species (with 95% CIs). A negative mortality indicates increased survival associated with handling.

Yield-per-Recruit

Slot Limit

figures/yield/slot/length_age.png

Figure 13. Calculated length by age and species.

figures/yield/slot/weight_length.png

Figure 14. Calculated weight by length and species.

figures/yield/slot/spawning_length.png

Figure 15. Calculated probability of spawning by length and species.

figures/yield/slot/vulnerability_length.png

Figure 16. Calculated vulnerability to capture by length and species.

figures/yield/slot/survivorship_length.png

Figure 17. Calculated natural survivorship by length and species.

figures/yield/slot/stock_recruit.png

Figure 18. Calculated yield as percent of total unfished biomass by annual interval exploitation rate and species.

No Slot Limit

figures/yield/noslot/stock_recruit.png

Figure 19. Calculated yield as percent of total unfished biomass by annual interval exploitation rate and species.

Recommendations

Recommendations include:

  • Record the lengths and weights of all captured fish.
  • Incorporate recaptures by research crew into survival model.
  • Add growth component to survival model to estimate growth parameters and adjust lengths.
  • Explore seasonal, annual and length-based variation in natural and fishing mortality.

Acknowledgements

The organisations and individuals whose contributions have made this analysis report possible include:

  • Quesnel Lake anglers for reporting their catches
  • Habitat Conservation Trust Foundation (HCTF)
    • and the anglers, hunters, trappers and guides who contribute to the Trust
  • Ministry of Forests, Lands and Natural Resource Operations
    • Lee Williston
    • Mike Ramsay
    • Greg Andrusak
  • Reel Adventures
    • Kerry Reed
  • Vicky Lipinski

References

Bison, Robert, David O’Brien, and Steven J. D. Martell. 2003. “An Analysis of Sustainable Fishing Options for Adams Lake Bull Trout Using Life History and Telemetry Data.” Kamloops, B.C.: BC Ministry of Water Land; Air Protection.

Bradford, Michael J, Josh Korman, and Paul S Higgins. 2005. “Using Confidence Intervals to Estimate the Response of Salmon Populations (Oncorhynchus Spp.) to Experimental Habitat Alterations.” Canadian Journal of Fisheries and Aquatic Sciences 62 (12): 2716–26. https://doi.org/10.1139/f05-179.

Brooks, Steve, Andrew Gelman, Galin L. Jones, and Xiao-Li Meng, eds. 2011. Handbook for Markov Chain Monte Carlo. Boca Raton: Taylor & Francis.

Chudnow, Rachel E., Brett T van Poorten, and Murdoch K. McAllister. 2018. “Estimating Cross-Population Variation in Juvenile Compensation in Survival for Bull Trout (Salvelinus Confluentus): A Bayesian Hierarchical Approach.” Canadian Journal of Fisheries and Aquatic Sciences, November. https://doi.org/10.1139/cjfas-2017-0555.

Fabrizio, Mary C., James D. Nichols, James E. Hines, Bruce L. Swanson, and Stephen T. Schram. 1999. “Modeling Data from Double-Tagging Experiments to Estimate Heterogeneous Rates of Tag Shedding in Lake Trout (Salvelinus Namaycush).” Canadian Journal of Fisheries and Aquatic Sciences 56 (8): 1409–19. http://www.nrcresearchpress.com/doi/pdf/10.1139/f99-069.

He, Ji X., James R. Bence, James E. Johnson, David F. Clapp, and Mark P. Ebener. 2008. “Modeling Variation in Mass-Length Relations and Condition Indices of Lake Trout and Chinook Salmon in Lake Huron: A Hierarchical Bayesian Approach.” Transactions of the American Fisheries Society 137 (3): 801–17. https://doi.org/10.1577/T07-012.1.

Kery, Marc, and Michael Schaub. 2011. Bayesian Population Analysis Using WinBUGS : A Hierarchical Perspective. Boston: Academic Press. http://www.vogelwarte.ch/bpa.html.

Myers, Ransom A., Keith G. Bowen, and Nicholas J. Barrowman. 1999. “Maximum Reproductive Rate of Fish at Low Population Sizes.” Canadian Journal of Fisheries and Aquatic Sciences 56 (12): 2404–19. http://www.nrcresearchpress.com/doi/abs/10.1139/f99-201.

Plummer, Martyn. 2015. “JAGS Version 4.0.1 User Manual.” http://sourceforge.net/projects/mcmc-jags/files/Manuals/4.x/.

R Core Team. 2018. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.

———. 2019. R: A Language and Environment for Statistical Computing. Vienna, Austria: R Foundation for Statistical Computing. https://www.R-project.org/.

Thorley, Joseph L., and Greg F. Andrusak. 2017. “The Fishing and Natural Mortality of Large, Piscivorous Bull Trout and Rainbow Trout in Kootenay Lake, British Columbia (2008–2013).” PeerJ 5 (January): e2874. https://doi.org/10.7717/peerj.2874.
